技術內容重點

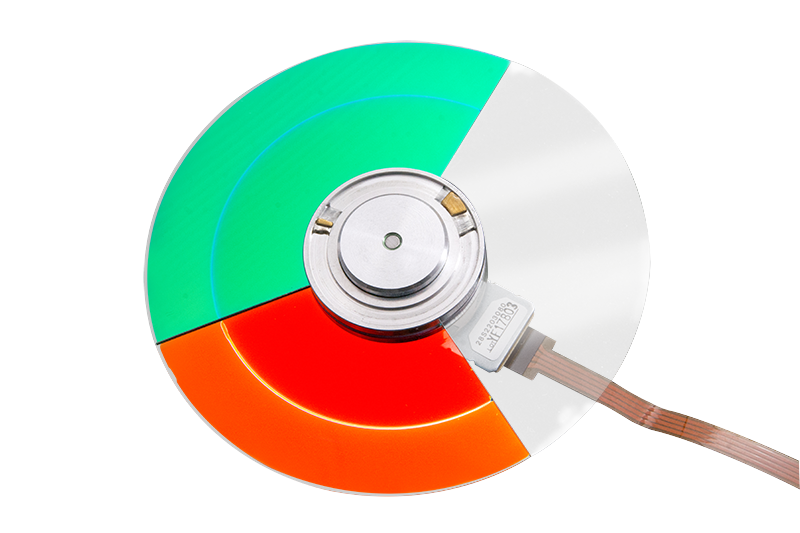

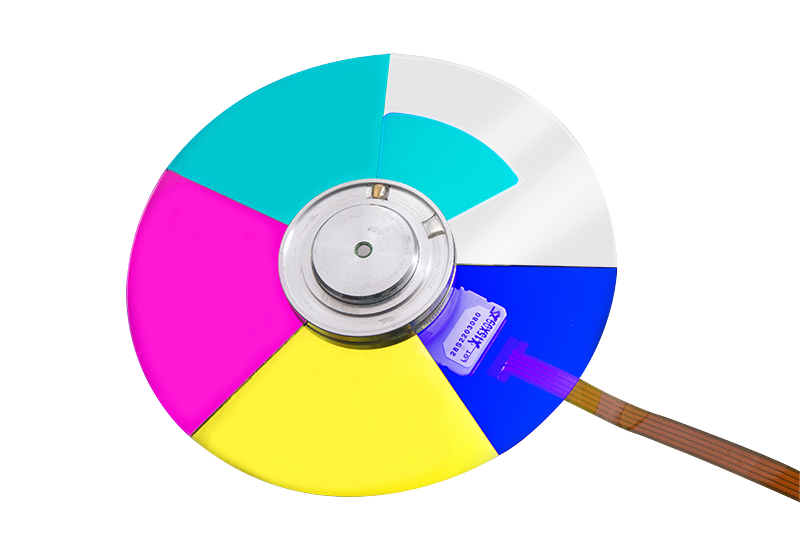

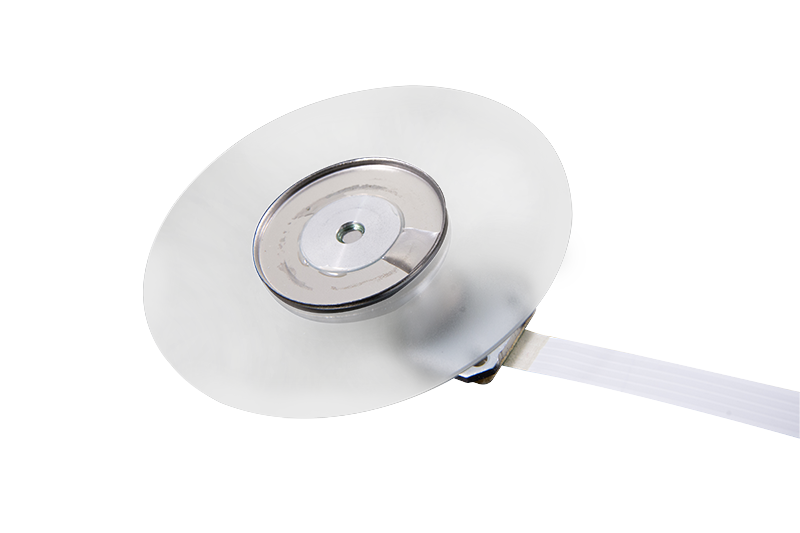

由數片固定角度之濾光片與直流馬達所組成，利用其高速轉動之特性將光源依順序過濾成RGB等基色。
應用範圍
應用於 DLP® 等投影系統，利用其快速濾光特性，將RGB等基色進行疊加，以產生投射影像之色階。
工藝水準
| 規格類目 | 規格說明 |
|---|---|
| Motor Type | 12 poles, 3 phases, brush less, outer rotor sensor less DC motor |
| Outer Diameter | 35 ~ 92 mm color ring load size |
| Color Segment | 3 ~ 8 sequential |
| Ratational Speed | Customize for 7,200, 9,000, 10,800 & 14,400 rpm |
| Operating Temperature | -5 ~ 85° C |
| Life | L1 27,000 hrs@7200 rpm ~ 20,000 hrs@10,800 rpm |
| Remark | * BrilliantColor™ Technology * DVE color to enhance deep gray color level * Patented 1-plane & 2-plane unbalancing technique * Flexible dichroic coating to match customized color * Precise round-out and filter plane flatness management * Superior noise performance with refined assy. jig & handling |
