工藝水準

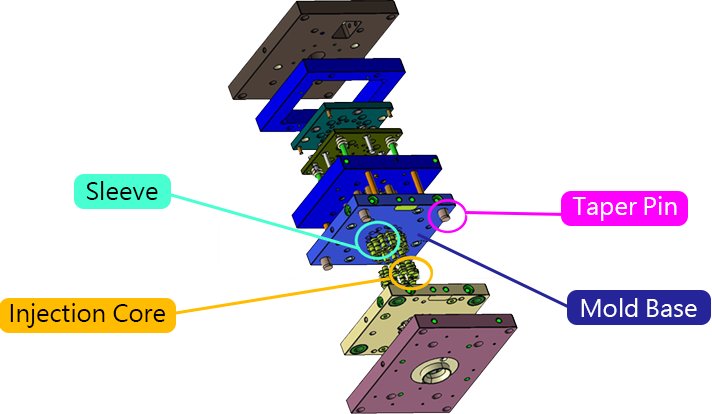

Taper Pin
Market Share 79,200 set / year
YOI max. capacity 8,400 set/year
Cylindrical accuracy < 0.5 um
Coaxially error < 0.5 um
Dimensions size error < 1.0 um

關鍵模具組裝零件
關鍵模具組裝零件
關鍵模具組裝零件
關鍵模具組裝零件
關鍵模具組裝零件

Mold Base
Market Share 6,600 set / year
YOI max. capacity 300 set/year
Decenter < 0.8 um
Coaxially Error < 1.0 um
Verticality < 1.0 um
Dimensions variation < 0.5 um
Dimensions size error < 1.0 um

關鍵模具組裝零件
關鍵模具組裝零件
關鍵模具組裝零件

Sleeve
Market Share 24,000 pcs / year
YOI max. capacity 4,320 pcs / year
Outside & inside Concentricity < 0.5 um
Verticality < 1.0 um
Dimensions variation < 0.3 um
Dimensions size error < 0.5 um

關鍵模具組裝零件

Injection core
Market Share 105,600 pcs / year
YOI max. capacity 8,640 pcs / year
Form accuracy (PV) < 0.1 um
Roughness(Ra) < 3.0 nm
Cylindrical accuracy < 1.0 um
Verticality < 1.0 um
Diameter error < 1.0 um

關鍵模具組裝零件

關鍵模具組裝零件
